Understanding Car Park Repair & Protection Systems
Concrete repairs
Decks, soffits, beams and columns are exposed to moisture, chlorides, carbonation and continual environmental attack. Over time, reinforcement can begin to corrode, causing cracking, delamination and spalling of the surrounding concrete.
Repairs begin with the controlled removal of defective concrete and preparation of the exposed reinforcement. Corroded steel is cleaned and treated where required before the repair is reinstated using specialist structural repair mortars selected for the substrate, exposure conditions and repair requirements. The objective is to restore the affected area, protect the reinforcement and provide a durable repair compatible with the existing structure.
Crack injection and corrosion protection
Cracks can provide a direct route for water and chlorides into reinforced concrete. The appropriate treatment depends on the nature, width, movement and cause of the cracking.
Where suitable, specialist resin injection systems can be used to seal or structurally bond cracks and restrict further ingress. Where corrosion risk extends beyond the immediate repair area, additional protection such as reinforcement treatments, corrosion inhibitors or galvanic anodes can be incorporated as part of the repair strategy.

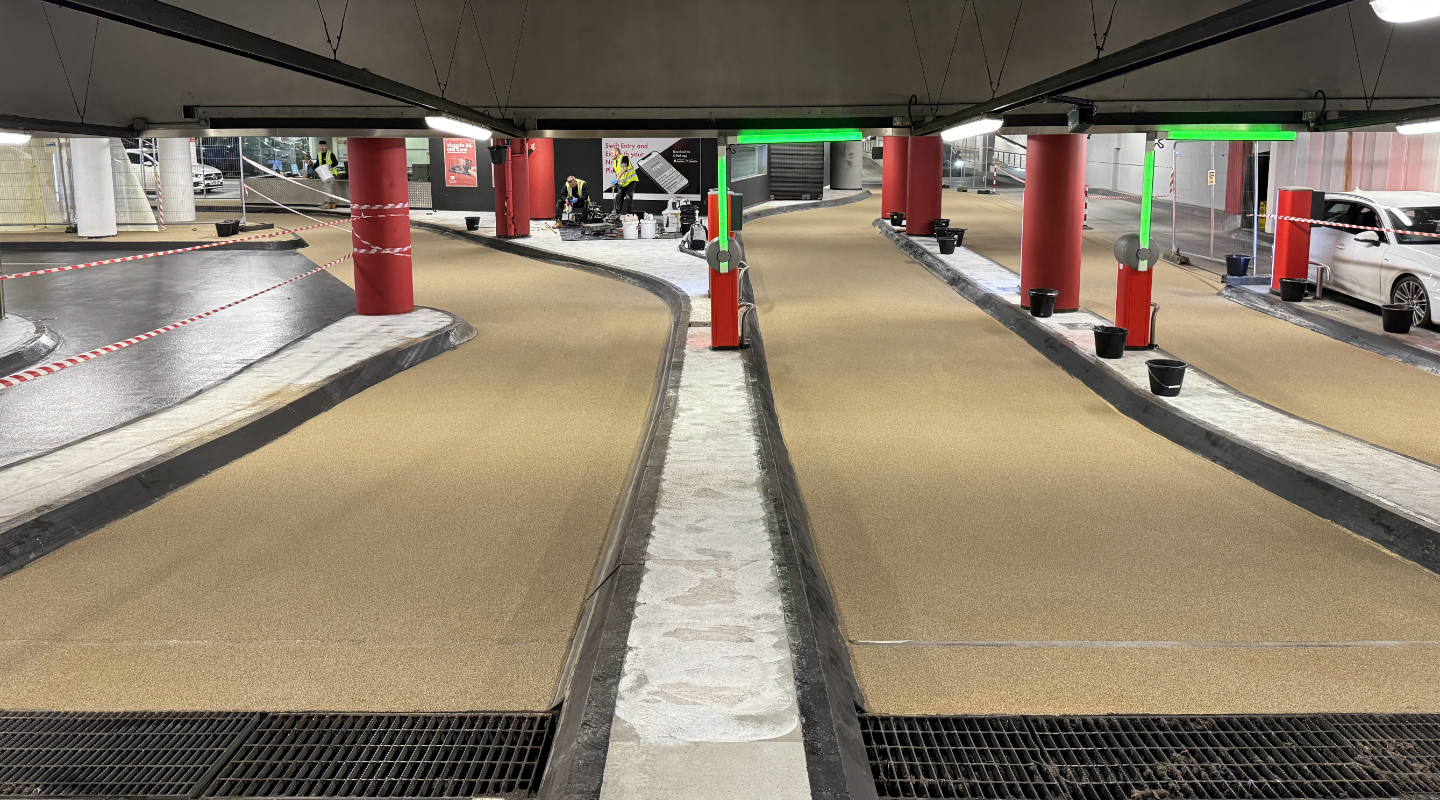

Deck waterproofing and traffic coating systems
Car park decks are continually exposed to vehicle traffic, water, de-icing salts, oils, abrasion and structural movement. Waterproofing and traffic coating systems provide a protective barrier between these conditions and the reinforced concrete structure beneath.
Systems are selected around the requirements of the individual deck and can incorporate primers, waterproof membranes, wear coats and slip-resistant finishes. Particular attention is given to interfaces, joints, upstands, drainage details and other vulnerable areas to provide continuity of protection and a durable trafficked surface.
Movement and expansion joints
Movement joints accommodate changes caused by temperature, loading, shrinkage and movement within the structure. When joint systems deteriorate, they can allow water and contaminants to penetrate directly into the deck and areas below.
Failed systems can be removed and replaced with movement joint solutions selected around the anticipated movement, joint configuration, traffic loading and waterproofing requirements. Correct detailing at the interface between the joint and surrounding deck system is particularly important to maintaining long-term performance.
Anti-carbonation and protective coatings
Carbonation gradually reduces the alkalinity of concrete and, once it reaches the reinforcement, can contribute to the breakdown of the steel’s natural protection and the onset of corrosion.
Anti-carbonation and protective coating systems help restrict the ingress of carbon dioxide and water while allowing appropriate moisture vapour transmission from the substrate. Used alongside correctly executed concrete repairs, these systems can help protect repaired and existing concrete and extend the service life of the asset.

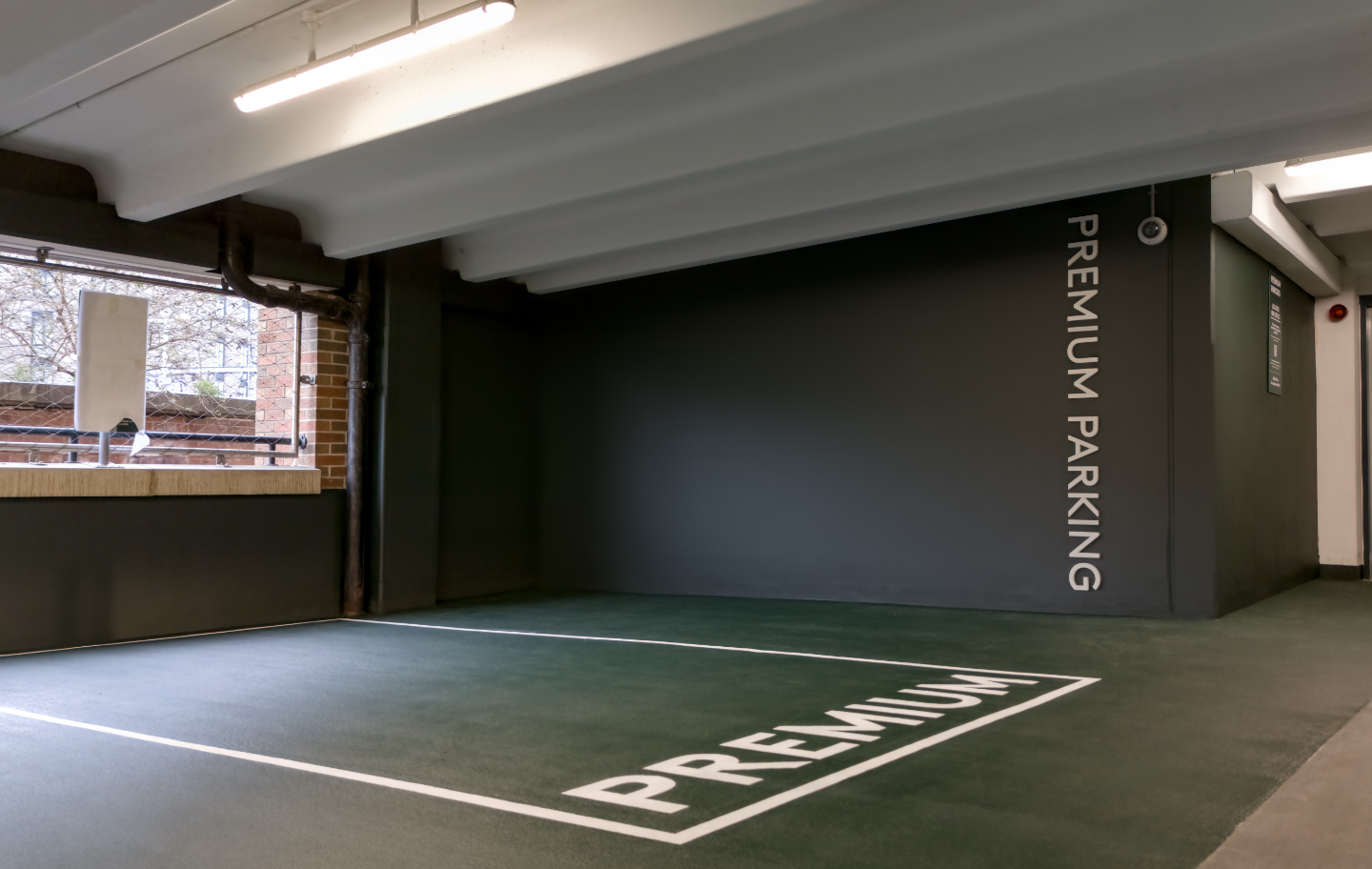

Line marking and bay reconfiguration
Clear, durable markings are essential to the safe and efficient operation of a car park. H³ Construct installs line marking and demarcation systems for parking bays, directional markings, pedestrian routes, crossings, hatched areas and safety zones.
Where existing layouts no longer meet operational requirements, parking bays and traffic routes can also be reconfigured to improve circulation, accessibility and use of the available space.
Drainage repairs and localised regrading
Effective drainage is fundamental to protecting a car park structure. Ponding and poorly controlled surface water increase slip risk and can accelerate deterioration by maintaining prolonged moisture exposure and carrying chlorides and contaminants into vulnerable areas.
Our works can include drainage channel replacement, repairs around outlets, localised regrading, ramp reprofiling and associated waterproofing details. These works can be incorporated into a wider refurbishment programme to improve falls, manage surface water and protect repaired areas.
Rapid and localised repairs
Not every defect requires a major refurbishment programme. Localised failures, damaged deck areas and high-wear locations can often be addressed through targeted repairs, particularly where maintaining access and minimising closures are important.
H³ Construct provides rapid and localised repair solutions, including our SwiftPatch service, to address defined defects and return affected areas to service within practical programme constraints.
Condition surveys and specialist investigation
Successful refurbishment begins with understanding the condition and causes of deterioration. H³ Construct can undertake and coordinate condition surveys, defect mapping and specialist investigation to establish the extent of deterioration and provide information to support the development of an appropriate repair strategy.
Where specialist testing or structural engineering assessment is required, this can be coordinated with suitably qualified testing organisations, consultants and structural engineers as part of the wider investigation.
